• Fruit Sorting Technology

    Fruit Sorting Solutions

    Internal Quality Sorting, Weight Sorting, Diameter Sorting, Density sorting, Shaper Sorting, Color Sorting, Skin Fold Sorting , Blemish Sorting for different fruit

    Sorting Fruit
  • Food Sorting Technology

    Food Sorting Solutions

    Improving the quality of the food and removing impurities by optical technology, free your hands and save cost.

    Sorting Food
  • Plastic Sorting Technology

    Plastic Sorting Solutions

    Automatically sort out the heterochromatic particles in the plastic, and separate PVC, PET, PP, HDPE, PE Film according to different materials of plastic

    Sorting Plastic
  • Ore Sorting Technology

    Ore Sorting Solutions

    Use AI technology to sort Non-metallic minerals(quartz sand), Black ore, Nonferrous ore, Precious metals etc

    Sorting Ore
  • Waste Sorting Technology

    Waste Sorting Solutions

    Removing impurities and improve the grade of waste plastic, waste paper, waste metal, waste glass etc.

    Sorting Waste

SORTING MACHINE

WHAT IS A SORTING MACHINE?

The sorting machine refers to the machinery and equipment for sorting, separating, and classifying products according to certain standards. Sorting can be based on different colors, different shapes, different sizes, different materials, or different weights. Sorting machine is suitable for grain processing, food sorting, tea classification, salt sorting, mining industry, garbage recycling and other fields.

SMG is the world's leading provider of sorting machine.

SORTING MACHINE GROUP
Sorting Machine Supplier
M1
64 Channels Color Sorter

64 Channels Color Sorter

Technology base on color sorting

M2
128 Channels Color Sorter

128 Channels Color Sorter

Technology base on color sorting

M3
192 Channels Color Sorter

192 Channels Color Sorter

Technology base on color sorting

M4
256 Channels Color Sorter

256 Channels Color Sorter

Technology base on color sorting

M5
320 Channels Color Sorter

320 Channels Color Sorter

Technology base on color sorting

M6
384 Channels Color Sorter

384 Channels Color Sorter

Technology base on color sorting

M8
512 Channels Color Sorter

512 Channels Color Sorter

Technology base on color sorting

M10
640 Channels Color Sorter

640 Channels Color Sorter

Technology base on color sorting

M12
768 Channels Color Sorter

768 Channels Color Sorter

Technology base on color sorting

T1
1 layer optical sorting machine

1 Layer Optial Sorting Machine

Multilayer machine based on optical sorting

T2
2 layers optical sorting machine

2 Layers Optial Sorting Machine

Multilayer machine based on optical sorting

T3
3 layers optical sorting machine

3 Layers Optial Sorting Machine

Multilayer machine based on optical sorting

T3V
4 layers optical sorting machine

2+1 Layers Optial Sorting Machine

Multilayer machine based on optical sorting

T4V
5 layers optical sorting machine

3+1 Layers Optial Sorting Machine

Multilayer machine based on optical sorting

T6V
6 layers optical sorting machine

3+3 Layers Optial Sorting Machine

Multilayer machine based on optical sorting

B640
One Layers + 640 Belt color sorter

Single Layer + 640 Belt Width

Technical Based On Belt Type Optical Sorting

B1280
One Layers + 1280 Belt color sorter

Single Layer + 1280 Belt Width

Technical Based On Belt Type Optical Sorting

B1600
One Layers + 1600 Belt color sorter

Single Layer + 1600 Belt Width

Technical Based On Belt Type Optical Sorting

BD1280
Double Layers + 1280 Belt color sorter

Double Layers + 1280 Belt Width

Technical Based On Belt Type Optical Sorting

BD1600
Double Layers + 1600 Belt color sorter

Double Layers + 1600 Belt Width

Technical Based On Belt Type Optical Sorting

BS300
Double Layers + 1600 Belt color sorter

Slow Speed + 300 Belt Width

Technical Based On Belt Type Optical Sorting

BS900
Double Layers + 1600 Belt color sorter

Slow Speed + 900 Belt Width

Technical Based On Belt Type Optical Sorting

BSD1200
Double Layers + 1600 Belt color sorter

Slow Speed + Two Layers

Technical Based On Belt Type Optical Sorting

BSD1500
Double Layers + 1600 Belt color sorter

Slow Speed + Two Layers

Technical Based On Belt Type Optical Sorting

BSG
Double Layers + 1600 Belt color sorter

Single Layer Stainless Steel

Technical Based On Belt Type Optical Sorting

BSG2
Double Layers + 1600 Belt color sorter

Double Layers Stainless Steel

Technical Based On Belt Type Optical Sorting

BWS
Double Layers + 1600 Belt color sorter

Wet Materials + Stainless Steel

Technical Based On Belt Type Optical Sorting

C3
nir color sorter

3 Chutes Nir Sorting Machine

NIR Sorter base on Near-infrared Technology

C5
near infrared sorting machine

5 Chutes Nir Sorting Machine

NIR Sorter base on Near-infrared Technology

C8
Nir Sorter

7 Chutes Nir Sorting Machine

NIR Sorter base on Near-infrared Technology

X60
64 Channels Color Sorter

X-ray Sorter

Based on x-ray detection and sorting

X80
128 Channels Color Sorter

X-Ray Optical Sorter

Based on x-ray detection and sorting

XM45
x ray inspection and sorting machine

X-Ray Inspection and Sorting

Based on x-ray detection and sorting

WHY CHOOSE SMG

Excellent sorting performance with reasonable price.

Global largest sorting machine and sorting solutions provider. Have more than 30 years experiences in industrial sorting industry. Annual production capacity of 5,000 sets of sorting machine. Can providing you with the world's top sorting solutions.

China's first optical sorter manufacturer and pioneer. We established China's first sorting laboratory and research institute.Subordinate body of United Nations is our client, it's strict procurement process can prove our product quality and service.

CHINA SORTING MARKET SHARE
58%
FOOD SORTING MARKET SHARE
63%
GRAIN SORTING MARKET SHARE
49%
INDUSTRIAL SORTING MARKET SHARE
75%

SORTING SOLUTIONS

World leading sorting solutions for different products

rice sorting machine

Rice Sorting

rice color sorter / rice optical sorting machine / rice sorter / rice color sorting machine

bean sorting machine

Bean Sorting

bean color sorter / bean optical sorting machine / bean sorter / bean color sorting machine

corn sorting machine

Corn Sorting

corn color sorter / corn optical sorting machine / corn sorter / corn color sorting machine

wheat sorting machine

Wheat Sorting

wheat color sorter / wheat optical sorting machine / wheat sorter / wheat color sorting machine

peanut sorting machine

Peanut Sorting

peanut color sorter / peanut optical sorting machine / peanut sorter / peanut color sorting machine

nuts sorting machine

Nuts Sorting

nuts color sorter / nuts optical sorting machine / nuts sorter / nuts color sorting machine

tea sorting machine

Tea Sorting

tea color sorter / tea optical sorting machine / tea sorter / tea color sorting machine

seeds sorting machine

Seeds Sorting

seeds color sorter / seeds optical sorting machine / seeds sorter / seeds color sorting machine

vegetables sorting machine

Vegetables Sorting

vegetables color sorter / vegetables optical sorting machine / vegetables sorter / vegetables color sorting machine

salt sorting machine

Salt Sorting

salt color sorter / salt optical sorting machine / salt sorter / salt color sorting machine

ore sorting machine

Ore Sorting

ore color sorter / ore optical sorting machine / ore sorter / ore color sorting machine

plastic sorting machine

Plastic Sorting

plastic color sorter / plastic optical sorting machine / plastic sorter / plastic color sorting machine

SORTING MACHINE WORKING PRINCIPLE GUIDE

Chapter 1: Sorting Machine By Different Color

  1. Machine name: color sorter
  2. Working principle: according to the different optical properties of materials,different colors turn into different photoelectric signals to drive solenoid valve to sorting different colors of granular materials.
  3. Application: Sorting machine is usually used for sorting of rice, corn, beans, seeds, food, nuts, tea, plastic

COLOR SORTER

Chapter 2: Sorting Machine By Different Weight

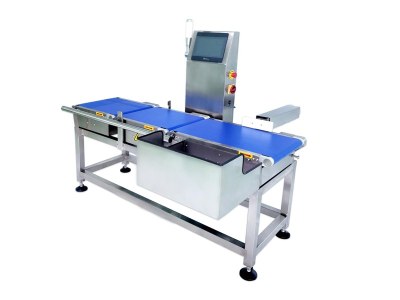

  1. Machine name: weight checker
  2. Working principle: When the material moves on the assembly line, the material weight is automatically weighed out, sorted according to the weight of the material, and the overweight and short weight products are sorted and automatically transferred to the designated position.
  3. Application: packaged food industry plastic

WEIGHT CHECKER

Chapter 3: Sorting Machine By Different Size

  1. Machine name: screening machine
  2. Working principle: Materials with different particle sizes are passed through a single-layer or multi-layer sieve with a uniform pore size . Particles larger than the sieve holes remain on the sieve surface, and particles smaller than the sieve holes pass through the sieve holes to achieve the purpose of sorting.
  3. Application: agricultural, mineral and other industrial products

SCREENING MACHINE

Chapter 4: Sorting Machine By Different Material

  1. Machine name: NIR sorter
  2. Working principle: Infrared detection of different materials will generate different photoelectric signals, thereby driving the rejection device to sort different materials.
  3. Application: Plastic recycling industry, ore sorting industry, garbage recycling industry

NIR SORTER

Chapter 5: Sorting Equipment By Optical Characteristics

  1. Machine name: optical sorter
  2. Working principle: According to different materials under different visible light, penetrating light and reflected light, different photoelectric signals are generated, thereby driving the sorting device.
  3. Application: suitable for sorting of various solid products

OPTICAL SORTER

Chapter 6: Sorting Equipment By Chemical Properties

  1. Machine name: chemical separation
  2. Working principle: Based on the differences in chemical properties of material components, chemical methods are used to change the material property composition, which includes two main processes: chemical leaching and chemical separation
  3. Application: Chemical Products

CHEMICAL SEPARATION

Chapter 7: Sorting By Different Characteristics Of Materials In The Magnetic Field

  1. Machine name: magnetic separator
  2. Working principle: Using the different magnetic permeability of various materials, when they pass a magnetic field, due to the different responses of different materials to the magnetic field, materials with high magnetic permeability are sucked up by the magnetic disk, and those with low magnetic permeability are not sucked up, thus being separated.
  3. Application: Ore sorting, ferrous metal recycling

MAGNETIC SEPARATOR

Chapter 8: Sorting By Different Characteristics Of Materials In The Electric Field

  1. Machine name: eddy current sorter
  2. Working principle: When metal scraps containing non-magnetic conductors pass through an alternating magnetic field at a certain speed, induced eddy currents are generated in these non-magnetic conductor gold chips. Because the material flow has a relative speed with the magnetic field, it has a thrust to the metal that generates the eddy current.
  3. Application: Non-ferrous metal recycling

EDDY CURRENT SORTER

Chapter 9: Sorting By Different Material Density And Buoyancy

  1. Machine name: Flotation machine
  2. Working principle: Due to the different density of the materials, the buoyancy in the liquid is also different. When they move steadily in the liquid, they will float on different levels of the liquid surface. Using this principle, materials of different levels of the liquid surface can be collected, achieve the purpose of sorting.
  3. Application: mineral separation and recycling industry

FLOTATION MACHINE

SMG is dedicated to continuously improve our service levels and help our customers through the entire sorting project planning and implementation process. Our primary goal: to meet and then exceed our client's expectations.

1. Chute's maintenance. When cleaning the chute, please do not use hard or sharp objects to prevent scratching the channels. For dust on the surface, you can use a dust cleaning air gun to clean it. The dust stuck to the chute can be wiped with a soft cotton cloth.

2. Maintenance and replacement of the cleaning brush. The cleaning brush must be replaced and calibrated regularly, otherwise it will affect the cleaning quality

3. Whether there is dust in the sorting room glass. If there is a lot of glass dust in the sorting room, the effect of the sorting will be affected. You can use a cotton cloth to wipe, or dipped a little alcohol on the cotton cloth to wipe, the air valve must be closed before wiping.

4. Maintenance of touch screen. When removing dust from the touch screen of a color sorter, you can use a soft cotton cloth to gently wipe it, or use a dust-cleaning air gun to blow the dust on the surface gently. Do not use an air gun to blow the touch screen surface directly, otherwise the surface will be damaged by excessive force.

5. Clean the dust outlet. The dust removal port must be cleaned regularly, once a week to prevent the dust removal filter from being blocked by dust for a long time, which is not conducive to dust removal and affects the separation effect.

6. Air valve maintenance. Due to environmental dust, moisture in the air, etc., foreign objects caused by the solenoid valve spool cause air leakage. There are two ways for general users to solve the problem on the spot: find out which nozzle is leaking, perform high frequency test on the nozzle in front of it, or use high pressure gas to directly blow the solenoid

7. Change the air filter regularly

1. Installation Cautions
1.1. The sorting machine should be installed on a horizontal plane, and no anchor bolts need to be buried. Machine must have a good grounding, with the bar at the grounding terminal to get into the ground for at least 50 cm.Installation should be made in well-ventilated places rather than places of low or high temperature, or with high humidity or many dusty.
1.2. Pay attention to prevent electromagnetic interference on the scene or in the vicinity, such as from electric welders or high frequency transmitters.Static interference from nearby static sources should be avoided. For this reason, the feed pipes and exhaust tubes used by customers must be made of iron, rather than plastics or other non-metallic materials.
1.3. Don't expose color sorters to sunlight or light emitted from lighting equipment, so as to avoid its interference with light sources of color sorters.

2. Unpacking and Inspection
After receiving the machine, unpack it carefully to avoid any damage to it; check the quantity of parts according to the packing list and keep it safe.

3. Installation
3.1. The Device should be placed on a enclosed solid platform or a hard ground (with the platform around 2.0 meter from the ground). the installed machine should be leveled with a leveling instrument to adjust the levelness of the machine to 2/1000 mm or below. a passage of more than 50 cm on each side should be made so as to facilitate the operation, inspection and maintenance.
3.2. According to actual applications on the scene, the feed inlet at the upper side should match the customers' feed pipes, and a flow control plate and a storage tank should be installed at the passageway, pay attention not to overlay feed tubes on feed hoppers so as to avoid vibration and adversely affect sorting results, two pipes should be installed at outlets to convey qualified goods and inferior goods obtained through first and secondary sorting operations respectively.
3.3. Users may need to install a lifter according to actual application on the scene by referring to the installation instructions.

4. Installation of Electrical Components
4.1 Warning: Users are required to strictly follow the circuit wiring instructions or precautions, so as to avoid personal injuries or electrical shock.
4.2. Users are required to offer a three-phase AC 380V ± 5% power supply (for air compressors), and a single-phase 220V ± 5% power supply with good grounding wires.
4.2.1. Power Supply for Sorting Machine.
A 20A or above air switch should be installed at the inlet of power supply wires (knife switches undesirable); the power supply should be 220V ± 5% (single-phase AC, 50/60 Hz).
4.2.2. Power supply for Air Compressor.
Air compressor should be installed at a place near to the sorting machine, with the pipe not farther than 10 meters in length; based on the actual application on the scene, an air switch of three-phase (380V) 60A should be installed.
4.3. In order to avoid interference and lightning, separate grounding wires with good grounding performance should be connected to the machine, with the grounding terminal getting into underground for 50 cm.

5.Installation of Air Supply
5.1. Users must use a water and oil-free air compressor, and install a water filter.
5.2. Screw type air compressor must be fitted with an oil filter, with the air components connected with each other with 25mm diameter galvanized pipes or pipes of higher classes (such as PPR pipes).
5.3. It is recommended to install the air system equipment at an insulated rooms near to the sorting machine (no more than 15 meters), thus reducing noise while offering adequate pressure.

6.Installation of Dust Collection Pipes
Users must install dust collection pipes to avoid the accumulation of ashes in the enclosed chamber, affect the sorting effect.

Learn more about sorting machine

Relevant Information

  • User Manual3.9 MB
  • Installation Guide4.2 MB

How does a sorting machine work?

The working principle of the optical sorting machine is to convert the optical signal into a photoelectric signal according to the difference in the optical characteristics of the material, distinguish it through an image processing system, send the signal to a pneumatic processing center, and then use compressed air to drive the electromagnetic valve to automatically separating heterochromatic particles out.

SMG uses the world's leading sensor-based optical sorting technology, with a sorting accuracy of more than 99.9%, and can sort products from 0.01mm to 10 cm. Professional team can provide complete solutions for your sorting project

Click here to watch more SORTING VIDEO that may help your sorting project find the right sorting machine.
